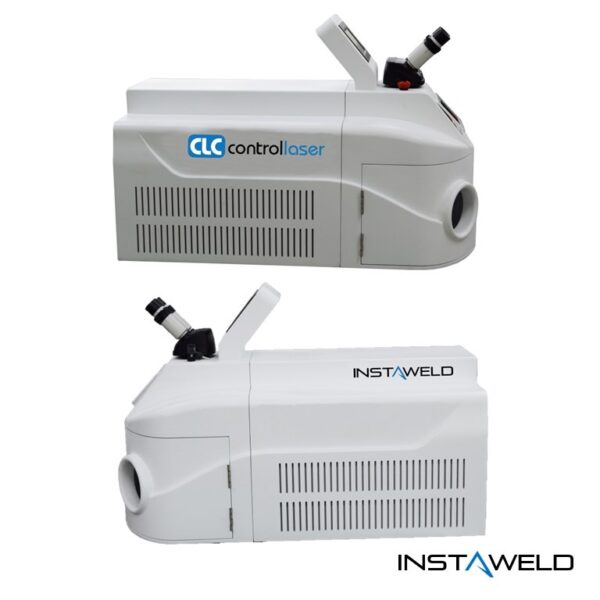

InstaWeld DT308 is the smallest tabletop model with the best compact size and excellent ergonomics for laboratories, jewelry shops, workshops, and entry-level customers who want to replace their traditional welding process.

Substitutive Technology/Process: Braze Welding, Arc Welding, ERW, Plasma Arc Welding, EBW.

Laser welding has minimum heat-affected-zone, minimum heat deformation, highest quality and no material adding needed.

Material:

• Metal: Steel, Aluminum, Nickel, Nickel Alloys.
• Special Metal: Tin, Titanium, TiNi.
• High Reflective Metal: Copper, Gold, Platinum, Silver.

Key Performance Design:

• Standard configured 200W output power, 140J pulse energy, 7000kW Peak power, forced-air water-cooled YAG laser with the life of estimated 10,000,000 times flash life.
• Standard configured LCD Display / Touch Screen, footswitch and Shield gas trigger control.
• Available to integrate Rotary, Axis, multi-axis motion device.
• Available to install high res Leica Binocular or Digital Camera.

Safety Design:

• The workstation designed as CDRH Class I, or IV compliance, technically block the employer’s worker’s compensation liability risk.
• Standard configured Exhaust fan to vent out fume.
• OD5 and OD6 Laser Protective Glass are available for Class IV situations; ensure no damage to the operator’s eyes.
• The workstation includes an anti-IR radiation view window, ensures no damage to the operator’s eyes.
